Incendiary Bombs

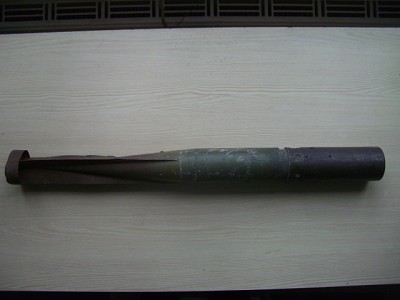

The most used and easily recognised bomb of the 2nd world war has to be the German Incendiary bomb, dropped on the UK in their millions, with lots failing to ignite.
It was said to me that during the war, most school boys had the fins of these bombs on their desks and used them as pencil holders.
One of the first bombs to be mass produced and used in the Spanish civil war of 1936.
Dimensions of 1kg and 1.3 kg bombs
Oa 13.75 inches
dia 2 inches
tail length 4 3/4 inches
Various Incendiaries
Various Incendiaries

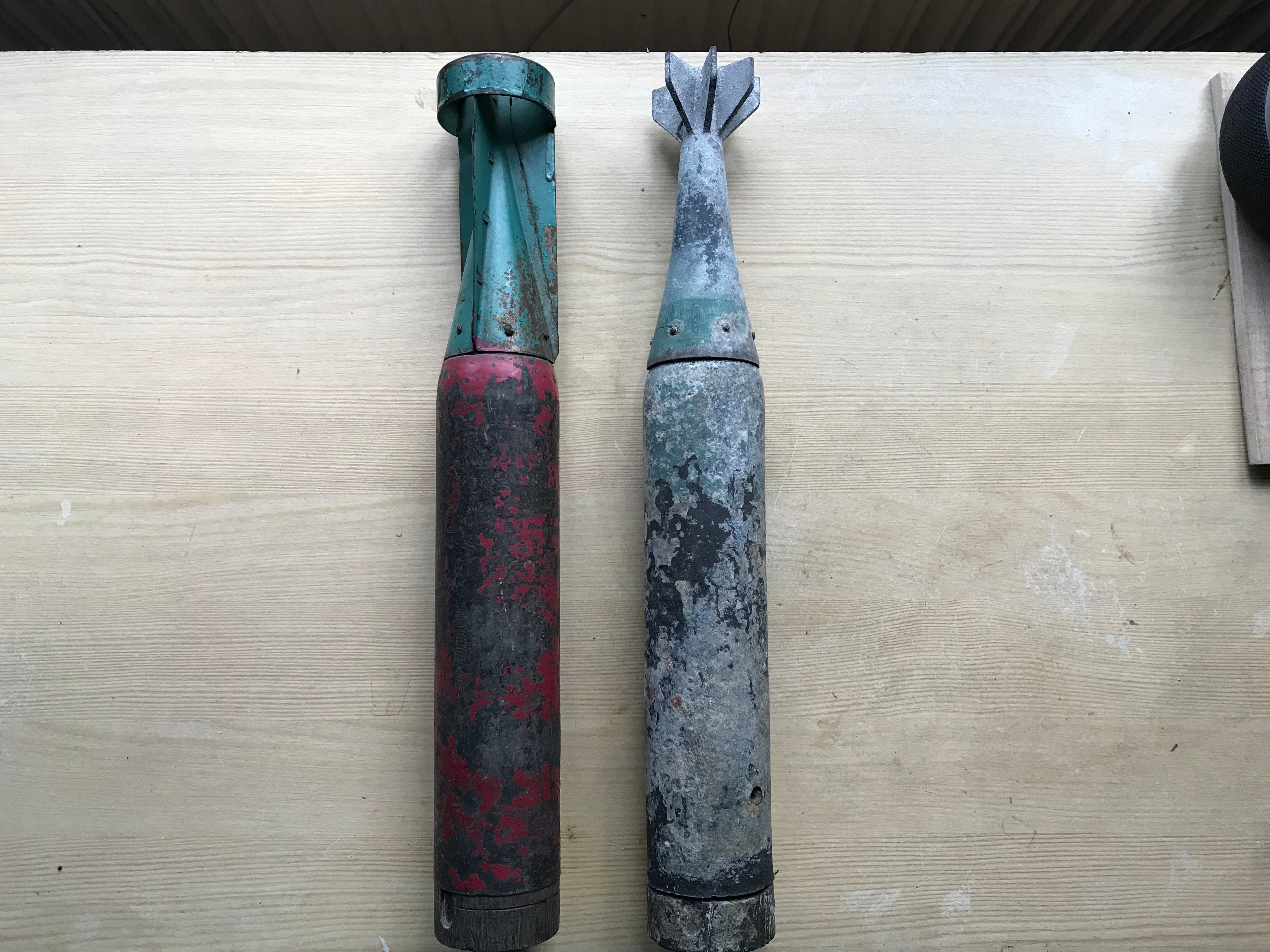

From top BRITISH 4LB below GERMAN 2.2KG below GERMAN 1KG and finally bottom FRENCH 1KG

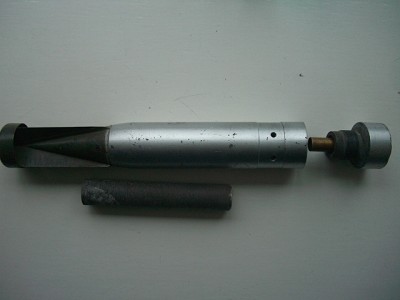

Component parts of the 1KG showing the charge case
Component parts of the 1KG showing the charge case

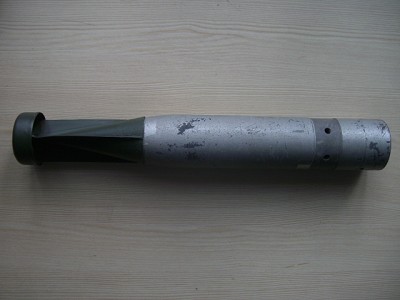

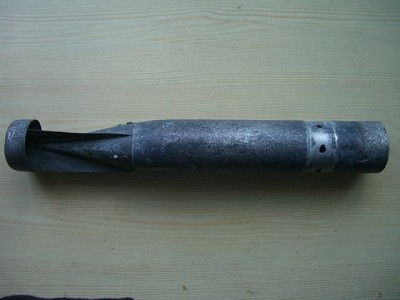

1.3 Kg Incendiary
1.3 Kg Incendiary
The nose was replaced with steel to assist in breaking of tiles prior to igniting.
1.3 Kg with Explosive tail
1.3 Kg with Explosive tail
The idea was to scatter the burning magnesium over a wide area.
Close up view of the explosive gaine
Close up view of the explosive gaine
Gaine
Gaine
The 1Kg with explosive tail
The 1Kg with explosive tail
Marking of nose fuze with explosive tail
Marking of nose fuze with explosive tail
FUZES FOR THE 1Kg and 1.3 Kg incendiaries
FUZES FOR THE 1Kg and 1.3 Kg incendiaries
AZ8312 magnesium
AZ8313A steel
AZ8313A steel
Steel and Magnesium bomb fuzes
Steel and Magnesium bomb fuzes

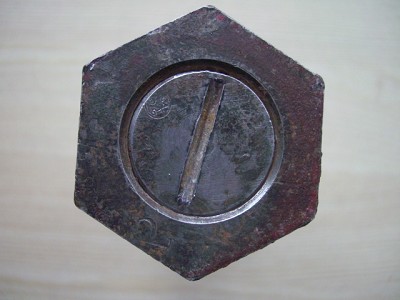

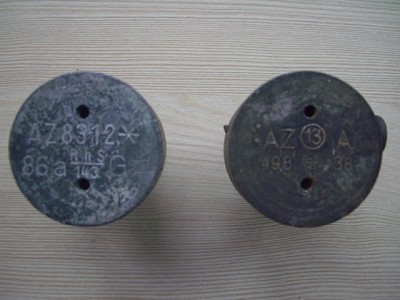

Markings on the fuzes
Markings on the fuzes

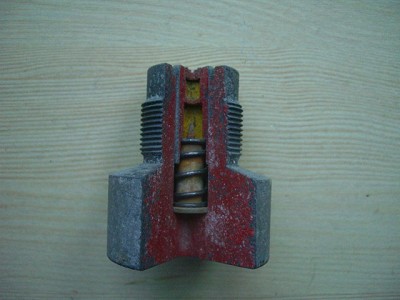

Sectioned fuze
Sectioned fuze
German 2 kg incendiary bomb with exploding nose
German 2 kg incendiary bomb with exploding nose

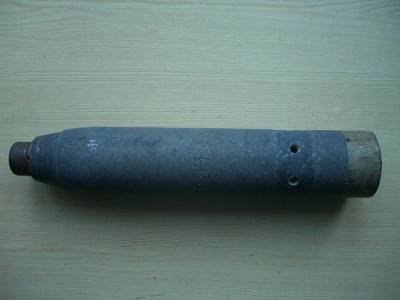

The 2.2 Kg explosive nose incendiary
The 2.2 Kg explosive nose incendiary
This consisted of a normal incendiary but added to this was a explosive cylinder which acted as a deterrent for those trying to put out the bomb and of course to do as much damage as possible
Front portion
Front portion
Front showing filler plug
Front showing filler plug

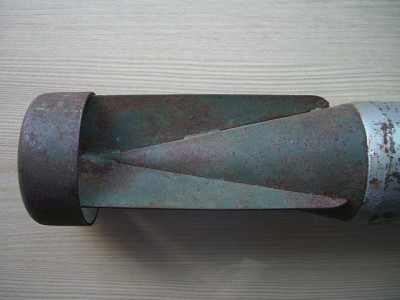

Tail of Explosive nosed 2.2 Kg
Tail of Explosive nosed 2.2 Kg
Note size difference

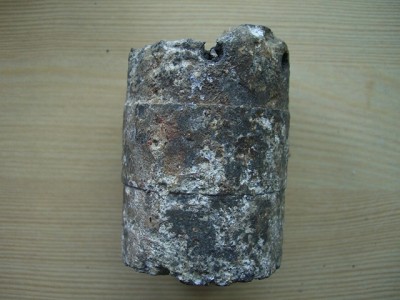

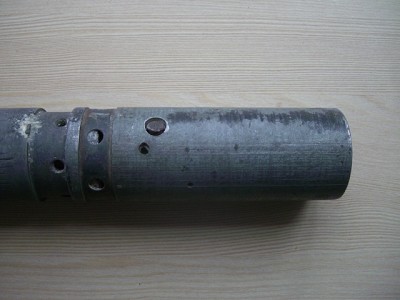

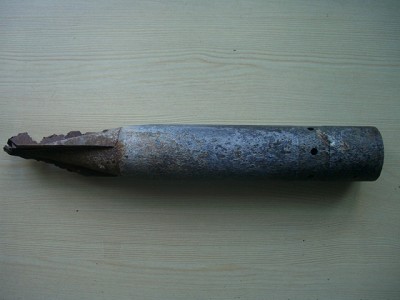

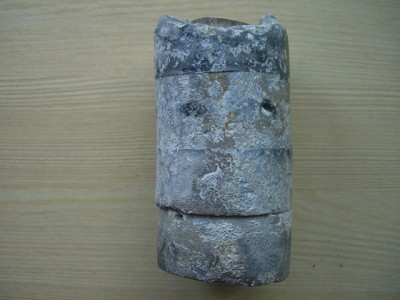

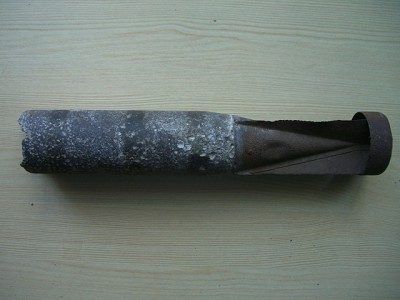

A partly burnt 1 kg
A partly burnt 1 kg
Explosive nose from the 2.2Kg incendiary
Explosive nose from the 2.2Kg incendiary
German 2.2Kg training incendiary bomb
German 2.2Kg training incendiary bomb

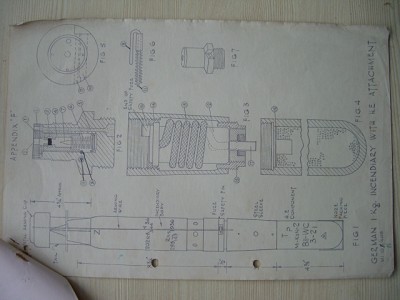

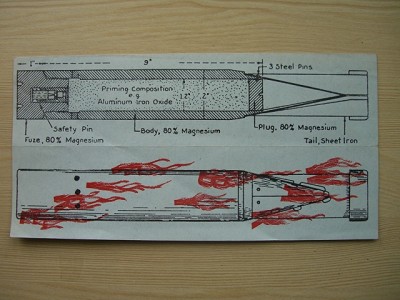

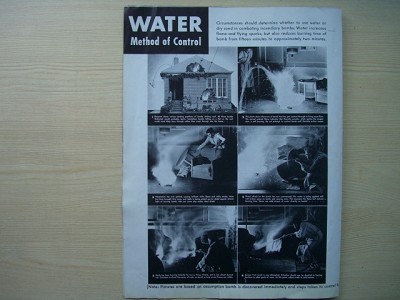

INFORMATION SHEETS ON THE VARIOUS GERMAN
INFORMATION SHEETS ON THE VARIOUS GERMAN

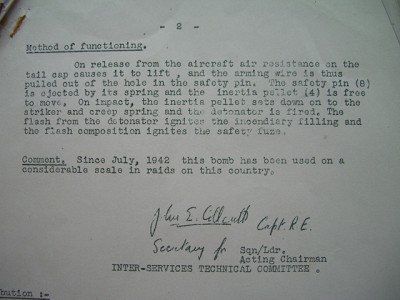

1942 dated papers on the 2.2 Kg
1942 dated papers on the 2.2 Kg
FRENCH INCENDIARIES
FRENCH INCENDIARIES
FRENCH 1KG dropped by the Germans over the UK
Close up picture of the French 1 Kg Incendiary Tail
Close up picture of the French 1 Kg Incendiary Tail
French Incendiary tail similar to German
French Incendiary tail similar to German
But the three pieces are slotted together not welded like the German ones.
Side by side view of both types of tails
Side by side view of both types of tails

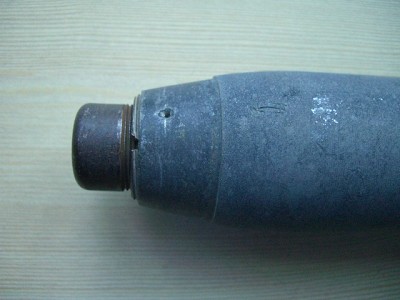

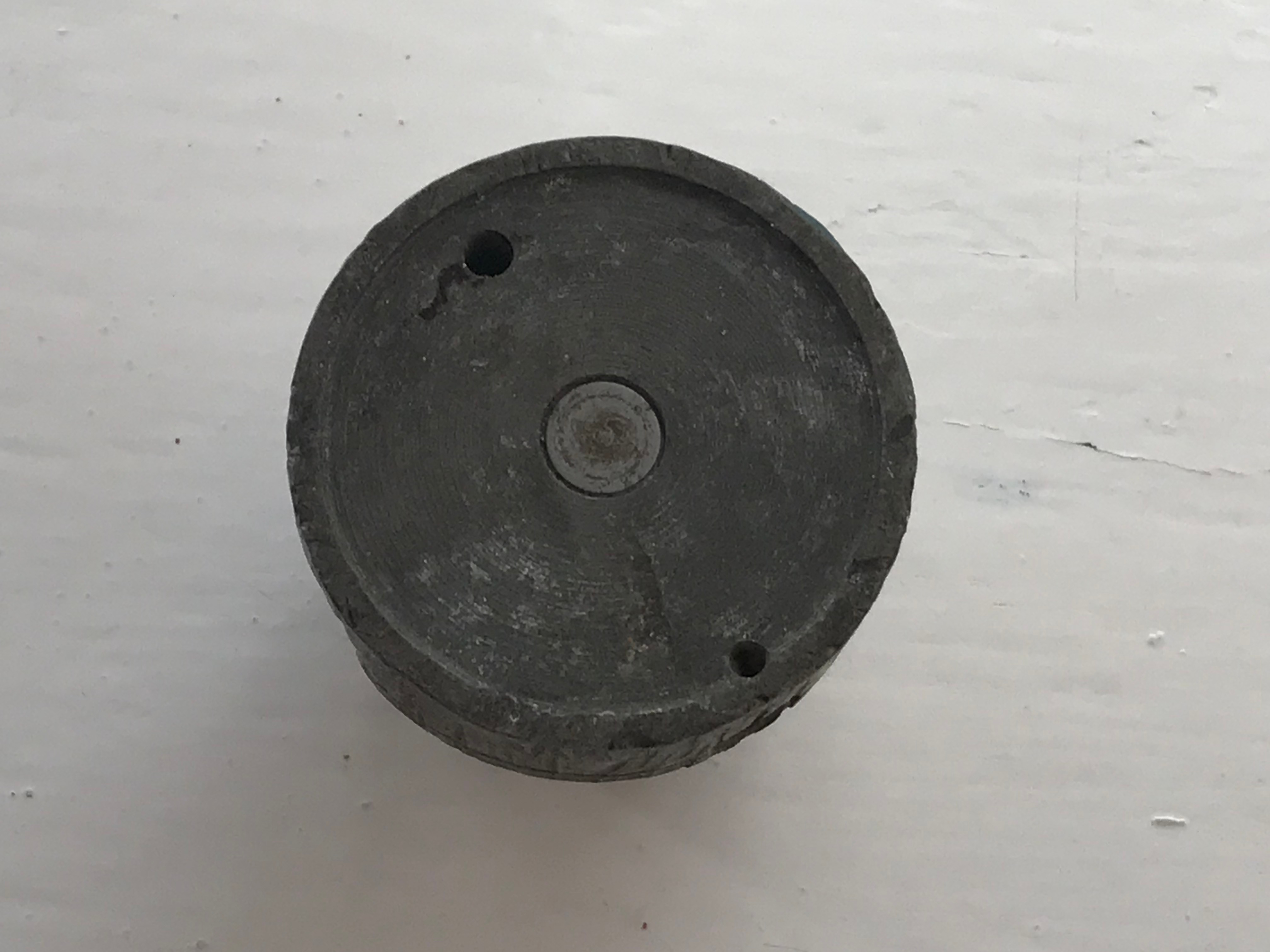

Nose fuze from French 1Kg
Nose fuze from French 1Kg
Internal view
Internal view
Side view of French nose fuze
Side view of French nose fuze
Information on the French incendiaries
Information on the French incendiaries
Swedish M83 Incendiary
Swedish M83 Incendiary

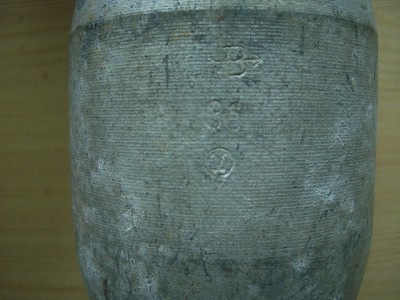

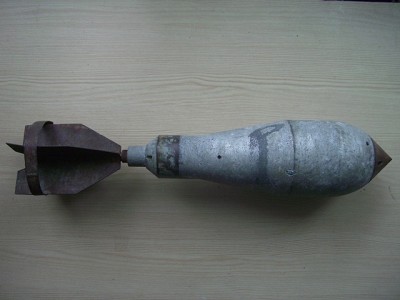

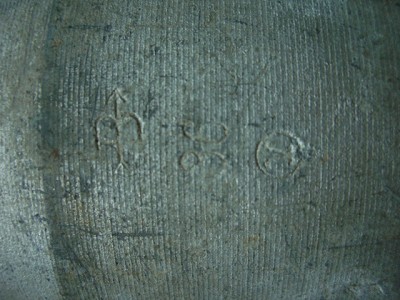

Markings on Body
Markings on Body
Markings on Body
Markings on Body

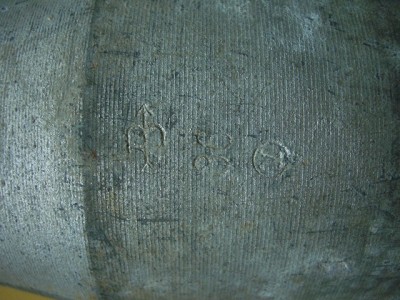

Markings on body of Swedish M83 Incendiary
Markings on body of Swedish M83 Incendiary
BRITISH INCENDIARIES
BRITISH INCENDIARIES
The British 4 LB
Fuze assy on British bombs the fuze was in the top
Fuze assy on British bombs the fuze was in the top

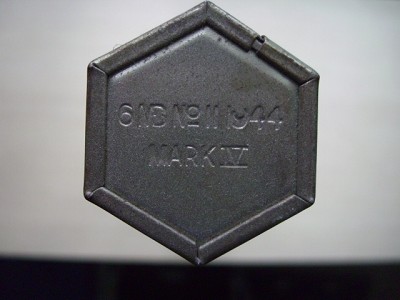

Top markings of British 4Lb this tail
Top markings of British 4Lb this tail
This was made at The Metal Box company 6 th factory

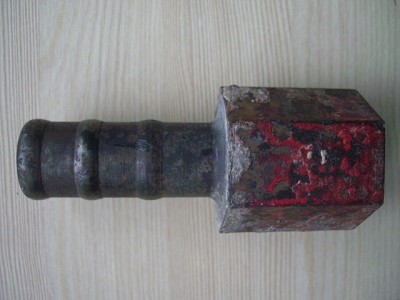

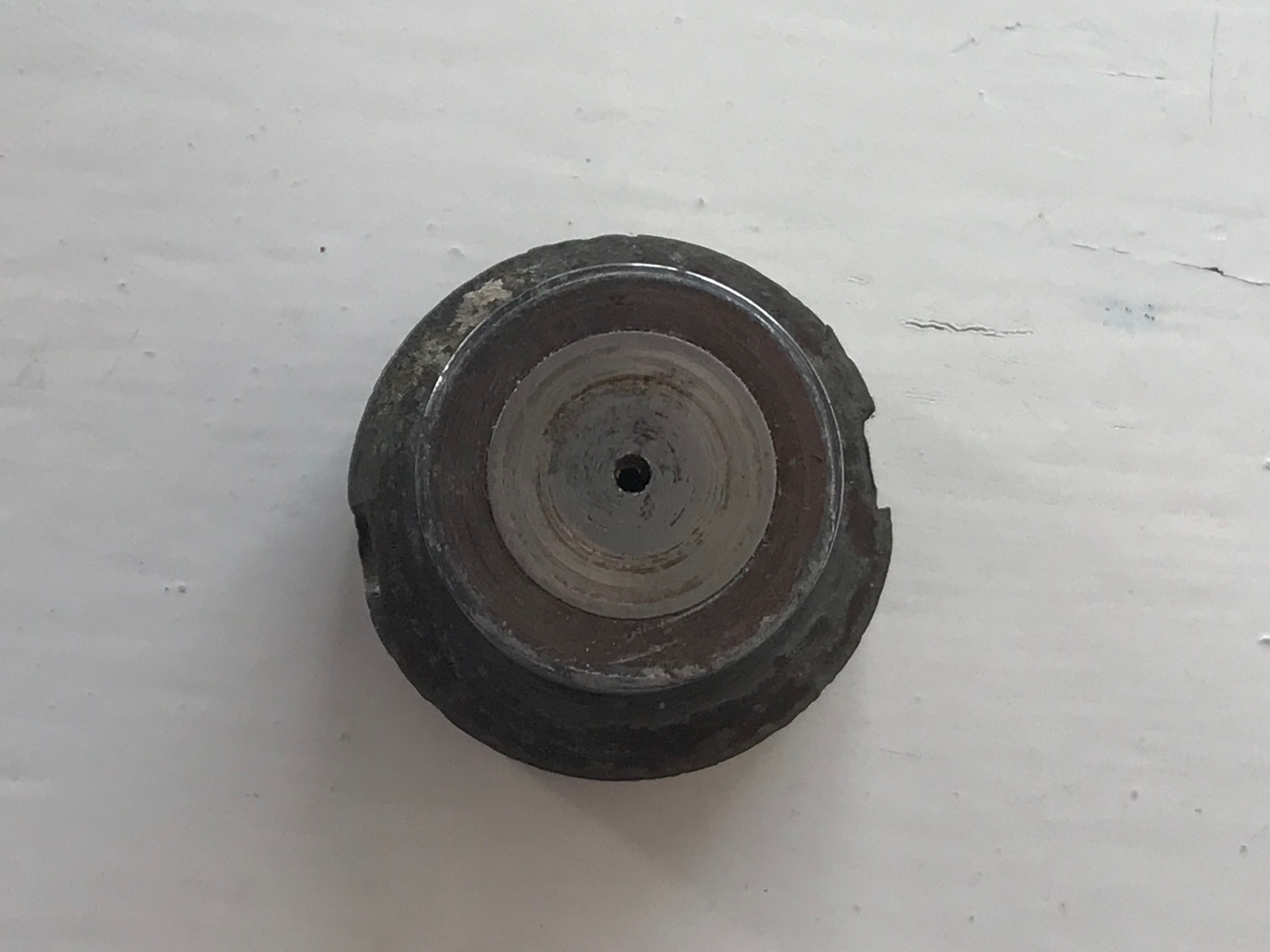

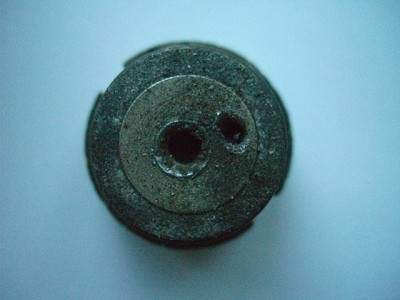

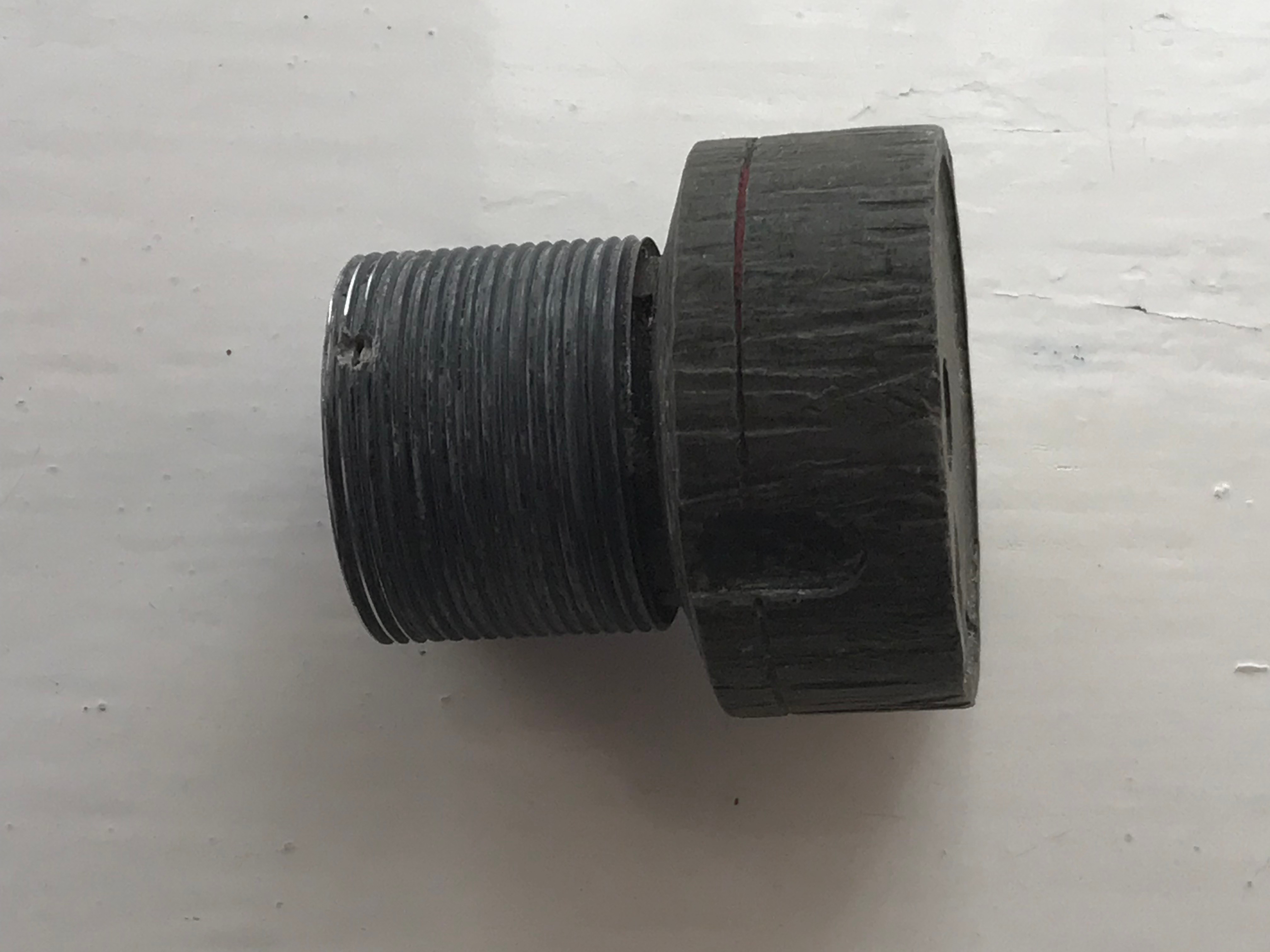

Nose plug with delay element from British 4Lb Incendiary
Nose plug with delay element from British 4Lb Incendiary
Front view of explosive nosed 4Lb
Front view of explosive nosed 4Lb
Top view
Top view

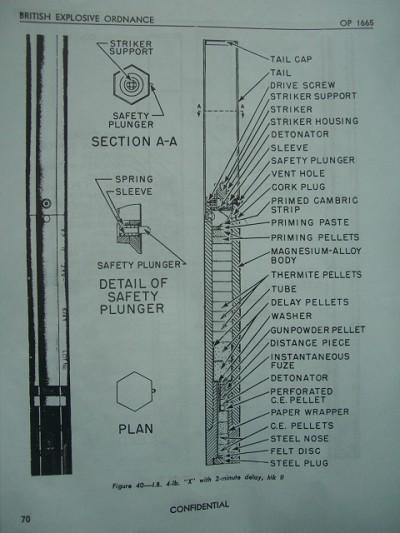

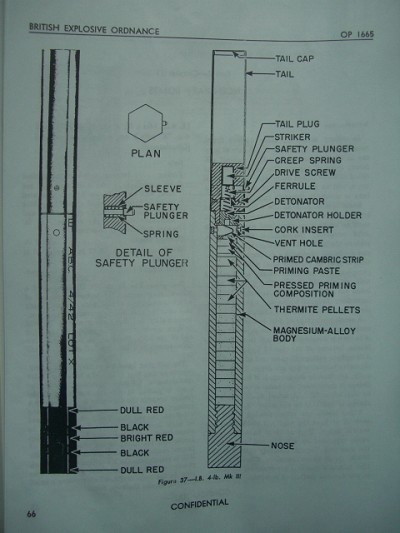

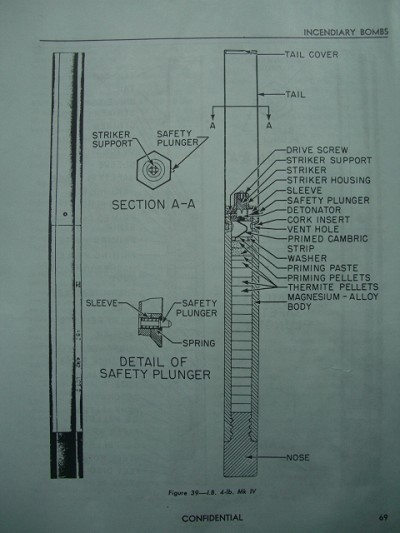

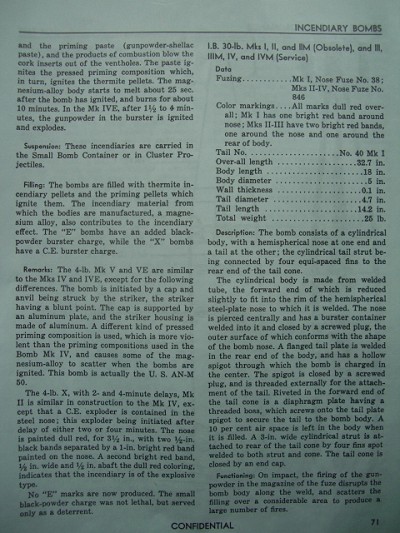

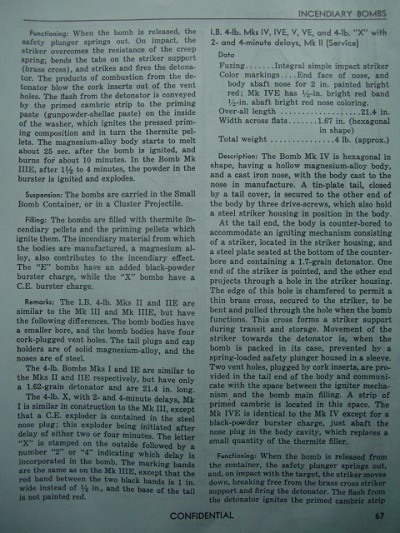

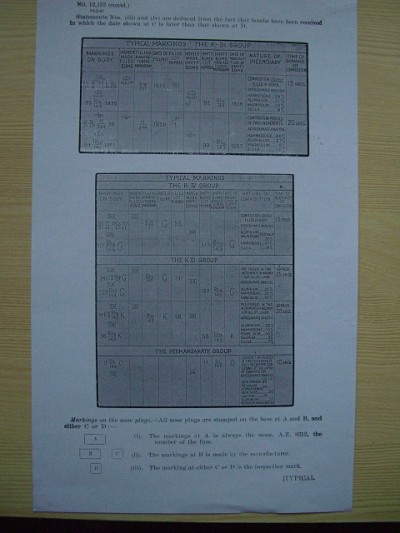

Op1665 sheets on the British 4 lb Incendiary bombs
Op1665 sheets on the British 4 lb Incendiary bombs
HOME OFFICE ARP INCENDIARY
HOME OFFICE ARP INCENDIARY

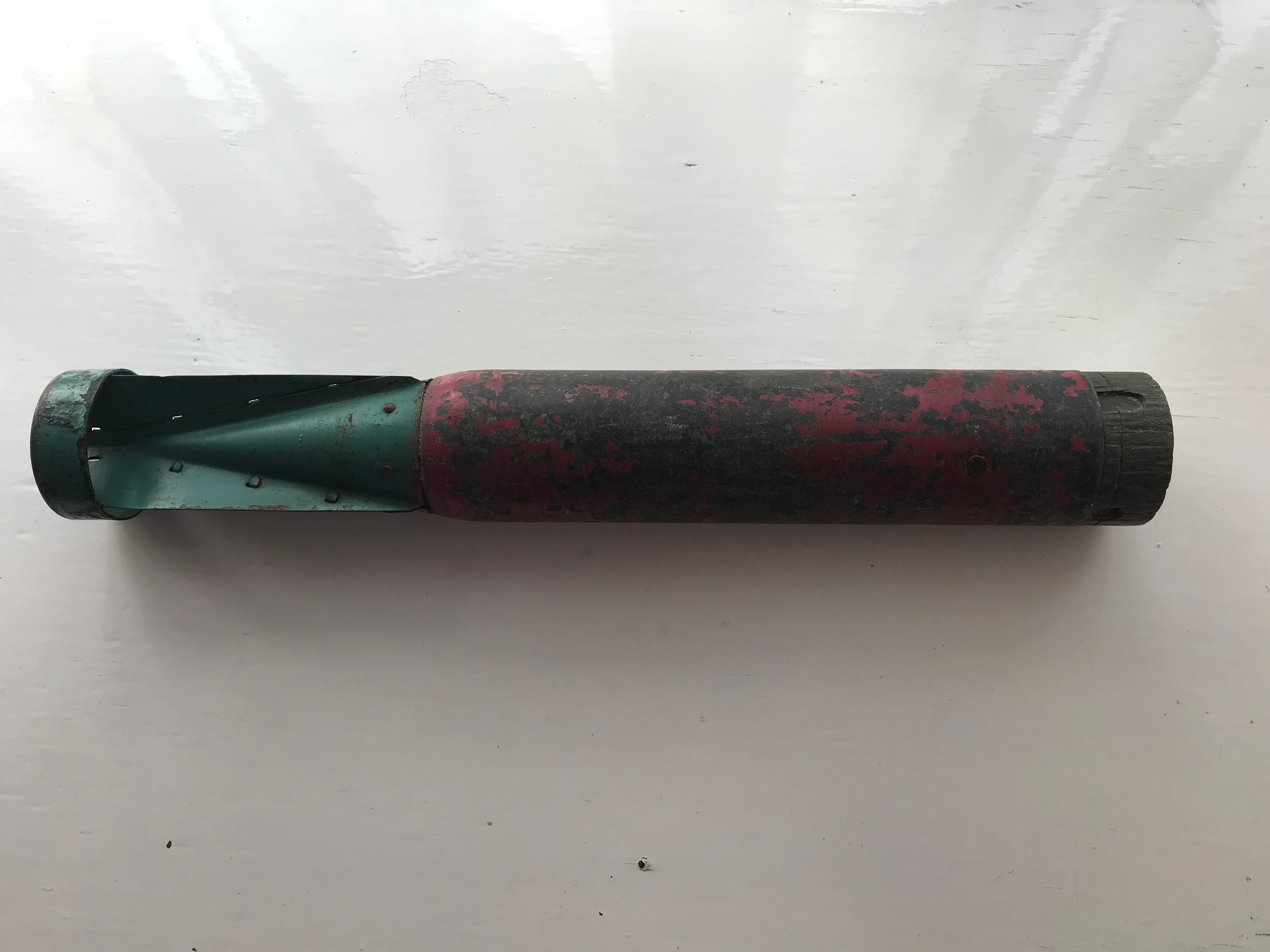

Training version

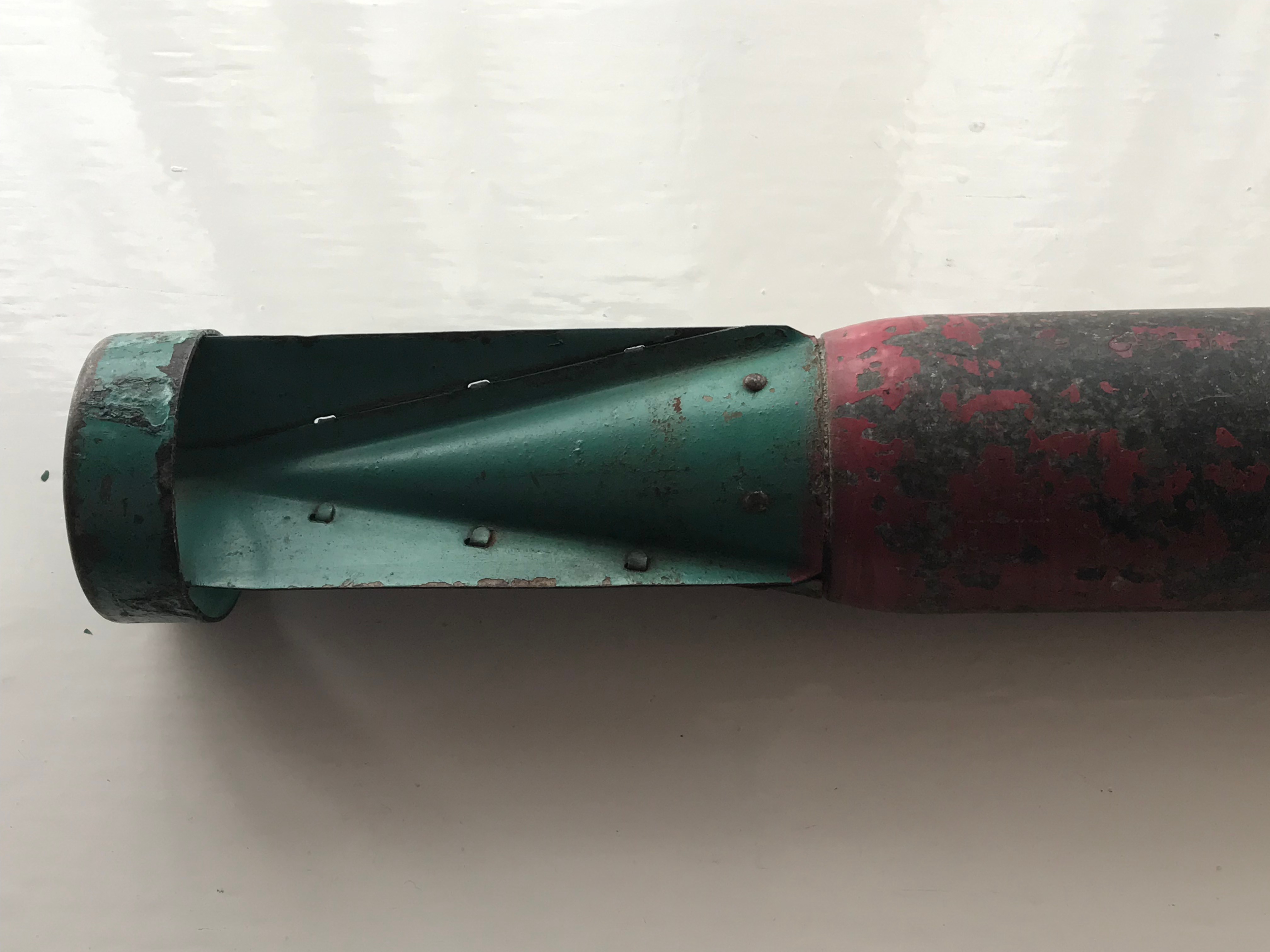

Tail assy of ARP incendiary
Tail assy of ARP incendiary
Nose of ARP incendiary
Nose of ARP incendiary

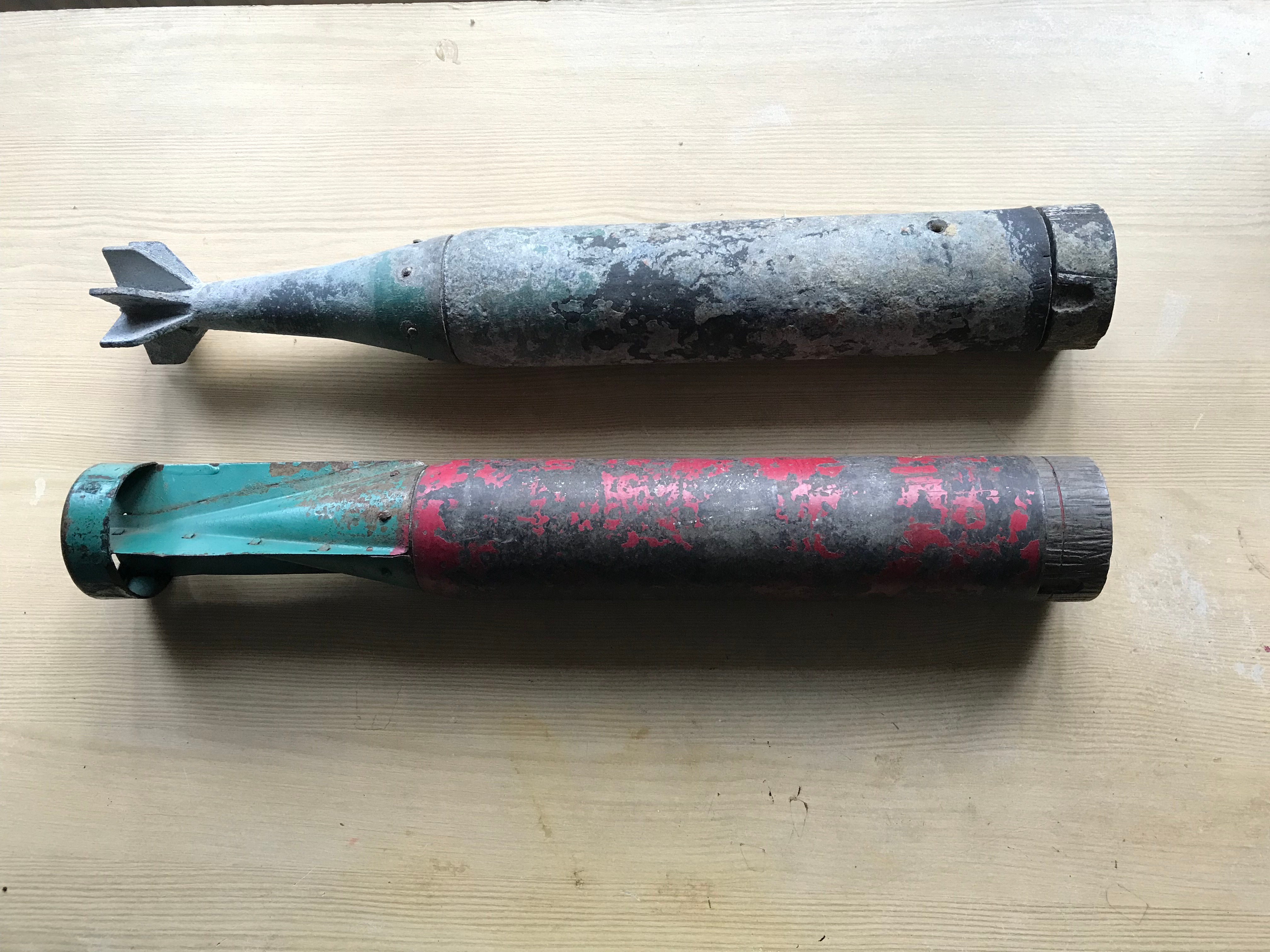

Side by Side view
Side by Side view
Top Home Office training version and a German 1Kg

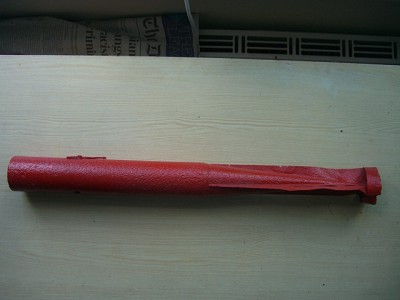

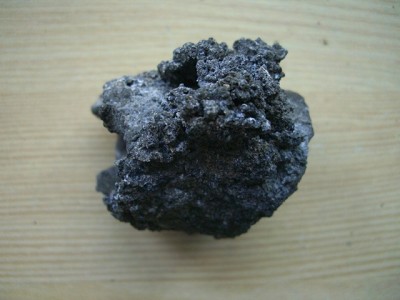

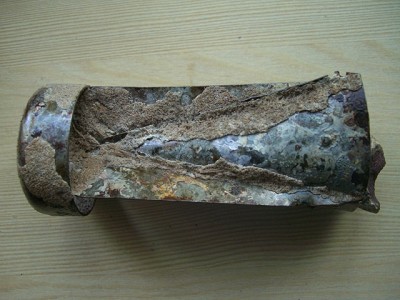

REMNANTS and BURNT OUT INCENDIARIES
REMNANTS and BURNT OUT INCENDIARIES
FILM PROP/DUMMY
FILM PROP/DUMMY

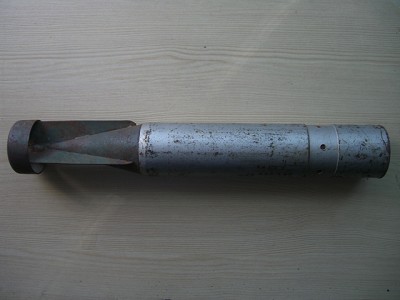

Replica 1KG Incendiary
Replica 1KG Incendiary

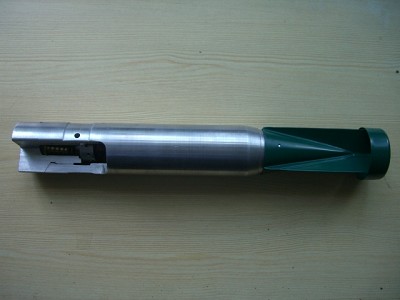

Made by Dug up as a museum quality or training aid.

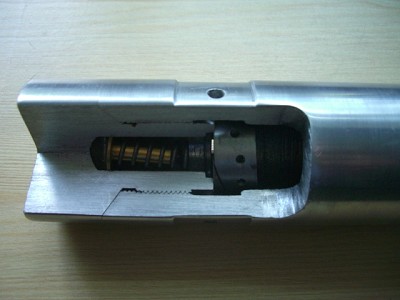

Look at the attention to detail in the sectioned front piece. Made of solid aluminium its a lot heavier than an original.
NOTES:
Sometime ago I was asked if a recently purchased German incendiary bomb was empty or not as the owner could not unscrew the nose fuze. After all these years a large amount of these Incendiaries wont unscrew due to the magnesium expanding with damp.

There are several ways to have a check to see if your one is possibly live.

First, when shaken, does it rattle? If it does this is usually a sign that the fuze has been removed and you have a retaining collar left inside.

Second, with a piece of flexible wire, fashion the end couple of inches into a right angle and gently insert it up inside through one of the fire holes. If there is an obstruction it still doesn't mean you have to panic, it maybe the split collar has got caught sideways inside the body.

Third, if methods one and two fail then weigh the body using suitable digital scales. These are the weights I obtained from my examples...

1 Kg standard incendiary all weights in Lbs using digital scales

Empty AZ83128* nose fuze no striker etc 1.437 Lbs

AZ8312@ nose fuze with striker etc 1.503 Lbs

Complete with empty charge case inside 1.598 lbs

1.3 Kg Steel nose fuze AZ8313 no components in fuze 2.235 Lbs

AZ8313 with components in fuze 2.303 Lbs

Remember, there maybe slight variations but only minor. Anything much heavier then caution is required.
